Water Heater 24" Drain Pan - Galvanized
A square galvanized drain pan for secondary containment beneath a water heater. It collects leakage, condensation and incidental discharge from the heater and its connections.
- Pan size: 24 × 24 × 2.5 in
- Material / finish: Galvanized steel / mill finish
- Thickness: 20 gauge / 0.039 in
Quote-based ordering. Download technical data and installation guidance below.
Add products to your Quote Builder, then send an RFQ for pricing and availability. Adding a product does not place an order.
Product Overview
A square galvanized drain pan for secondary containment beneath a water heater. It collects leakage, condensation and incidental discharge from the heater and its connections.
This is the square pan, not the separate RDP-24-GA round pan. The drain-opening dimension identifies the pan hole, not a nominal pipe or thread size.
Water heater and installation piping are not included. Confirm appliance fit and the actual drain connection before installation.

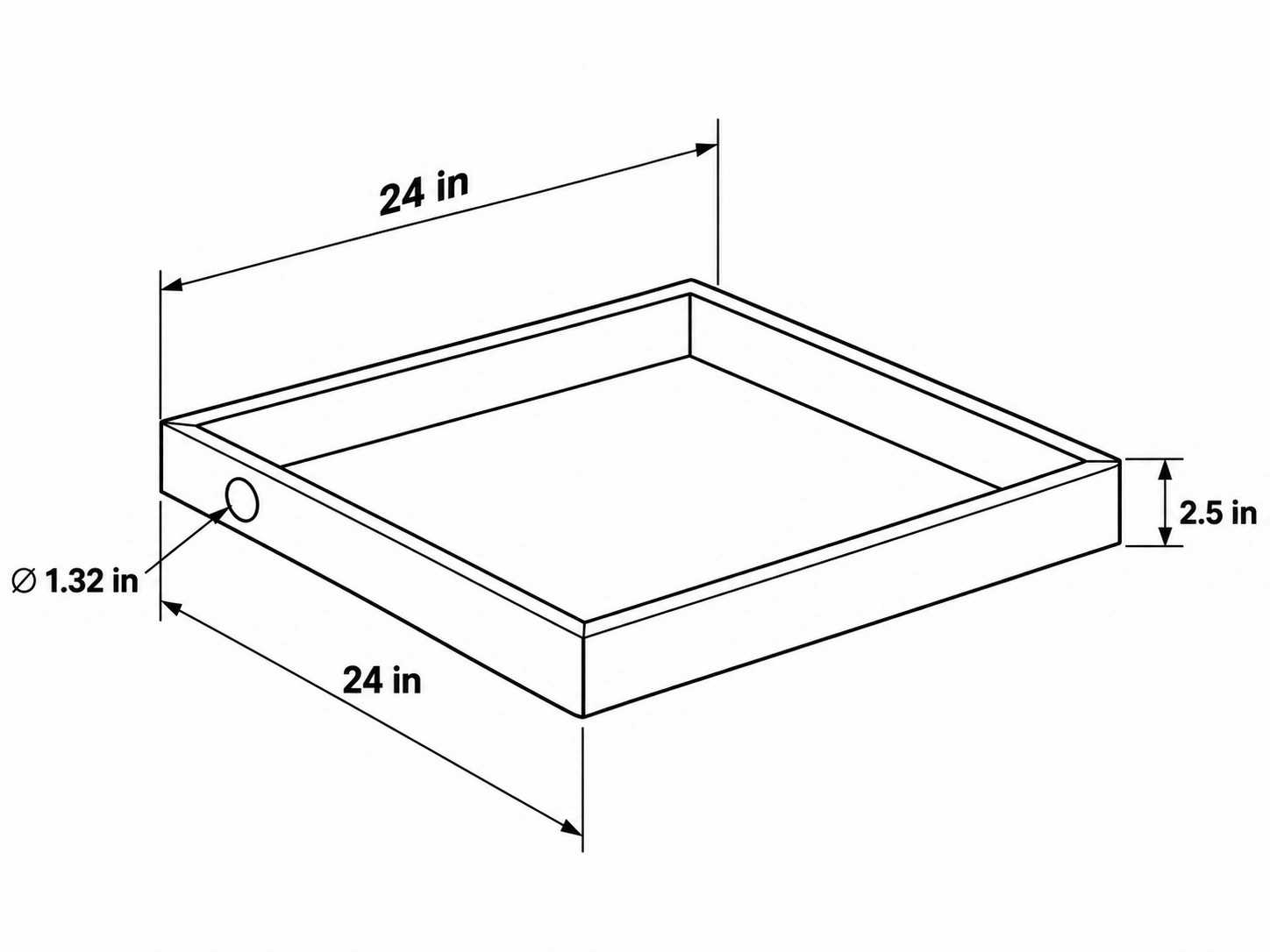

Specifications
- Official SKU
- DP-24-GA
- Pan size
- 24 × 24 × 2.5 in
- Material / finish
- Galvanized steel / mill finish
- Thickness
- 20 gauge / 0.039 in
- Drain opening
- 1.32 in diameter
- Drain fitting
- NPT fitting included
- Construction
- Metal formed square pan
Downloads
Technical Documents
Download the technical data and fillable project submittal for this exact product, plus its shared installation guidance. Save the PDF locally and use a form-capable PDF application to complete the submittal.
Frequently Asked Questions
Where are the technical documents?
Download the technical data and fillable project submittal, plus the applicable shared installation guide, in Technical Documents. Save the PDF locally to complete its form fields in a form-capable PDF application.
How do I request pricing?
Add this official product to your Quote Builder and specify quantities and project requirements. A quote request is not an order.
Have a product question?
Ask about specifications, compatibility, or your project requirements.
Related Products
Water Heater 24" Round Drain Pan - Stainless Steel
A round stainless steel drain pan for secondary containment beneath a water heater or other compatible round-base equipment.

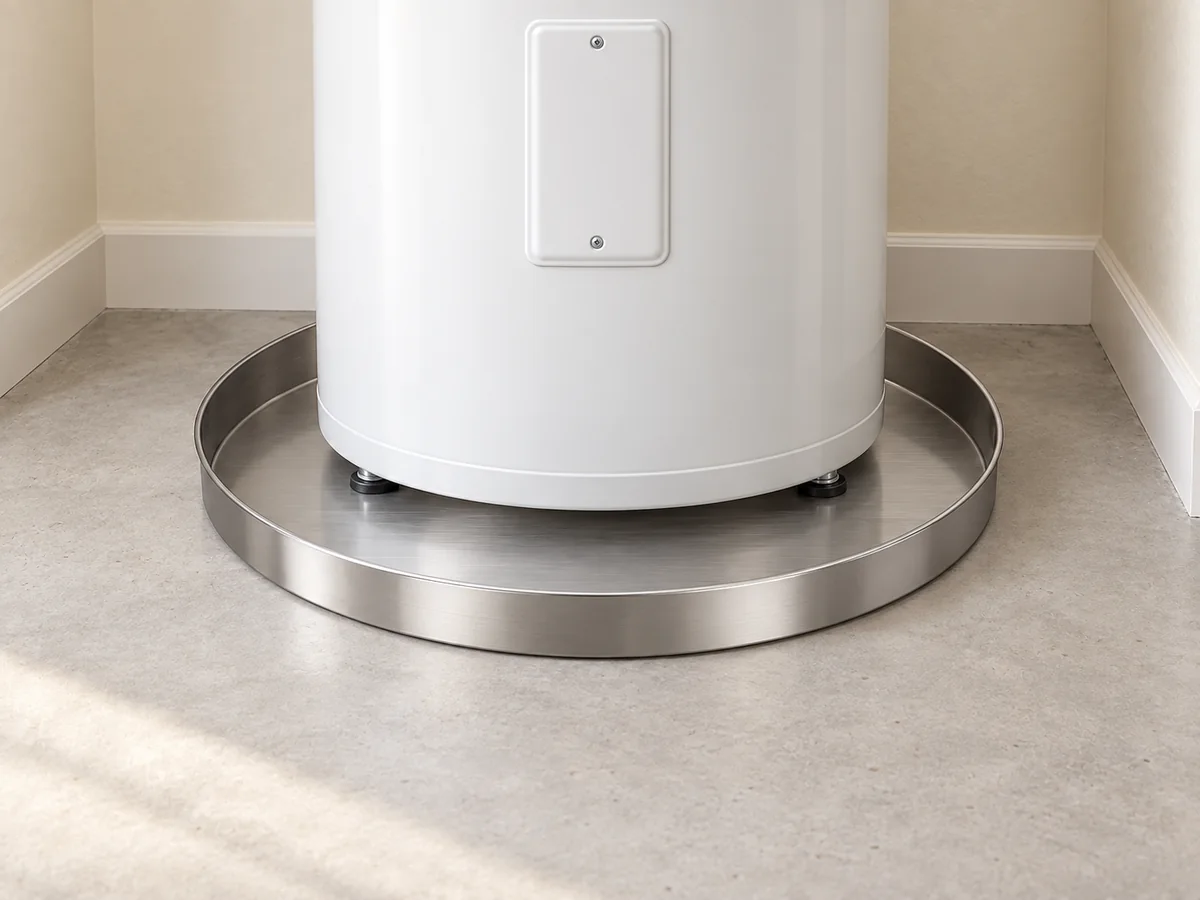

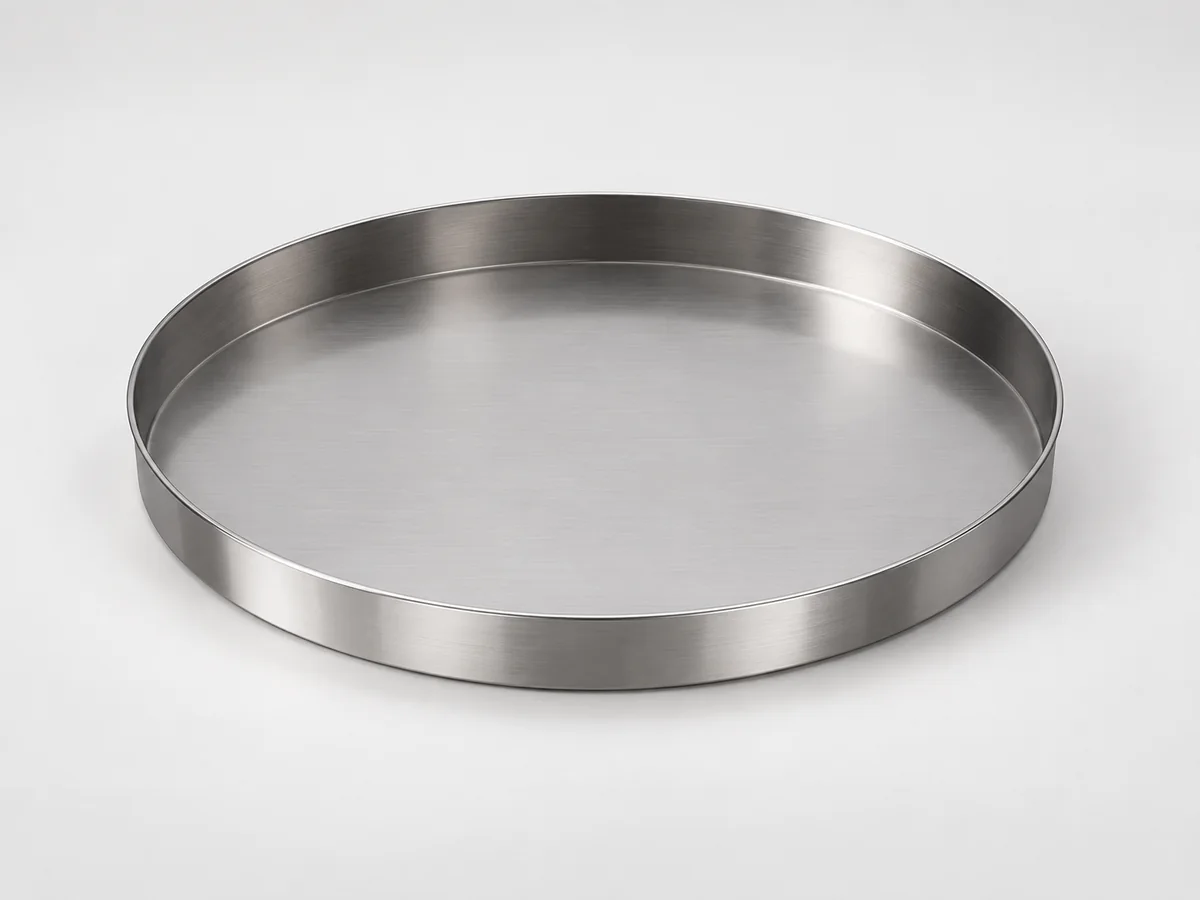

Water Heater 25.5" Round Drip Pan - Stainless Steel
