Water Heater 24" Wall-Mount Platform with Expansion Tank Bracket - Galvanized
A galvanized wall-mount platform and drainage-pan assembly for water heaters up to 20 gallons. Includes one two-pack hanger strap kit and the ETB-2-GA expansion tank bracket kit.
- Water-heater application: Up to 20 gallons
- Maximum platform load: 300 lb

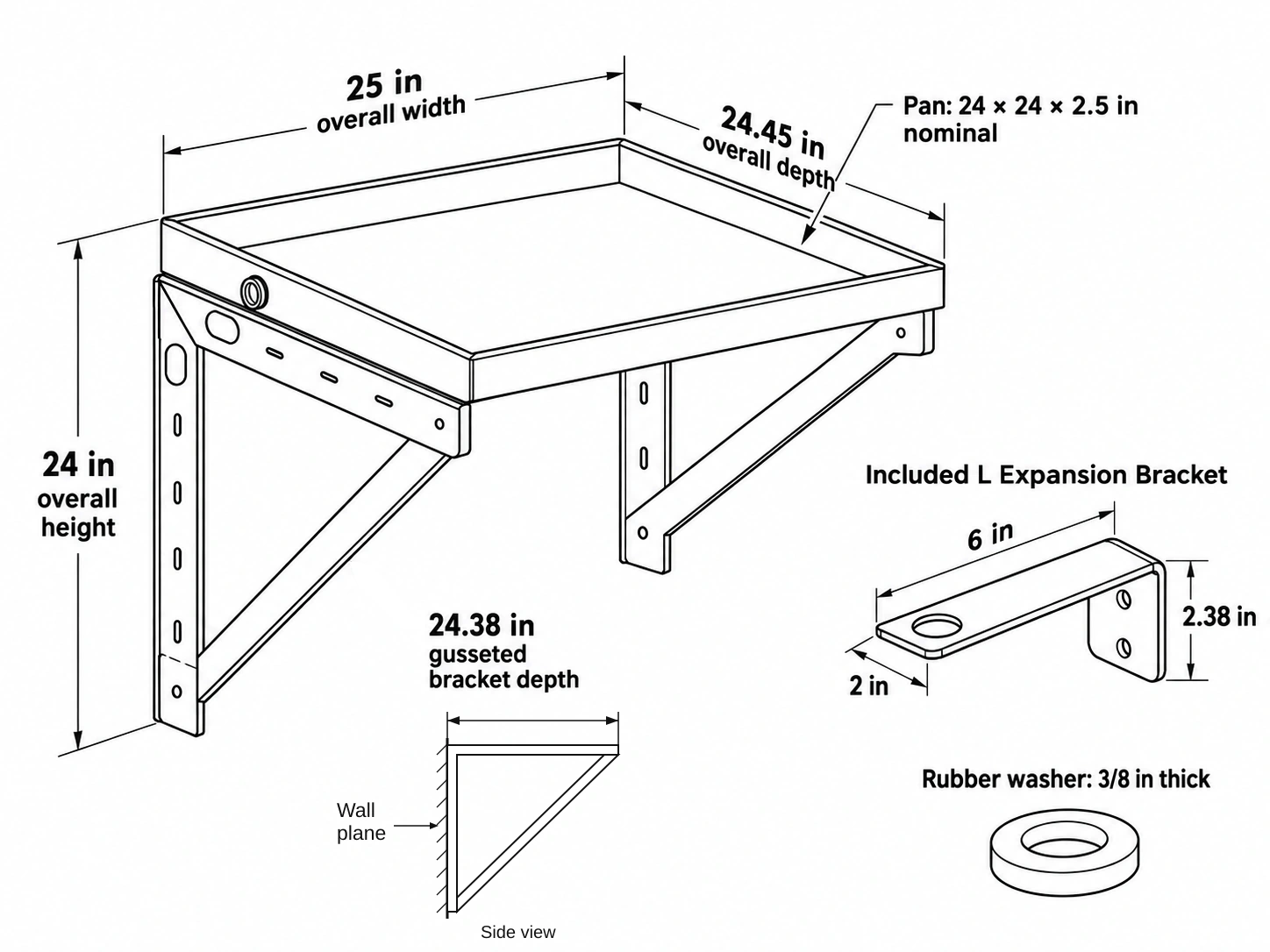

- Overall platform / pan envelope: 25 in wide × 24.45 in deep × 24 in high
Quote-based ordering. Download technical data and installation guidance below.
Add products to your Quote Builder, then send an RFQ for pricing and availability. Adding a product does not place an order.
Product Overview
A galvanized wall-mount platform and drainage-pan assembly for water heaters up to 20 gallons. Includes one two-pack hanger strap kit and the ETB-2-GA expansion tank bracket kit.
Wall-mount fasteners are installer supplied. Recommended platform anchorage is six 3/8 in or 1/2 in wood lag screws; the source mounting detail shows six 1/2 × 3 in hex lag screws. Anchor to the faces of vertical structural studs, not horizontal cross-blocking.
Water heater, expansion tank and wall-mount lag screws are not included. One strap kit means two straps, not two kits. Component ratings are separate and must not be added together.
Specifications
- Official SKU
- WHP-24-GA-C2
- Water-heater application
- Up to 20 gallons
- Maximum platform load
- 300 lb
- Overall platform / pan envelope
- 25 in wide × 24.45 in deep × 24 in high
- Gusseted bracket depth
- 24.38 in
- Nominal pan size
- 24 × 24 × 2.5 in; illustrated inside wall 2.42 in
- Material / finish
- Galvanized steel / mill finish
- Material thickness
- Brackets 11 gauge; drain pan 20 gauge
- Configurations
- Wall standing and wall hanging
- Included accessory kits
- HS2-10-GA and ETB-2-GA

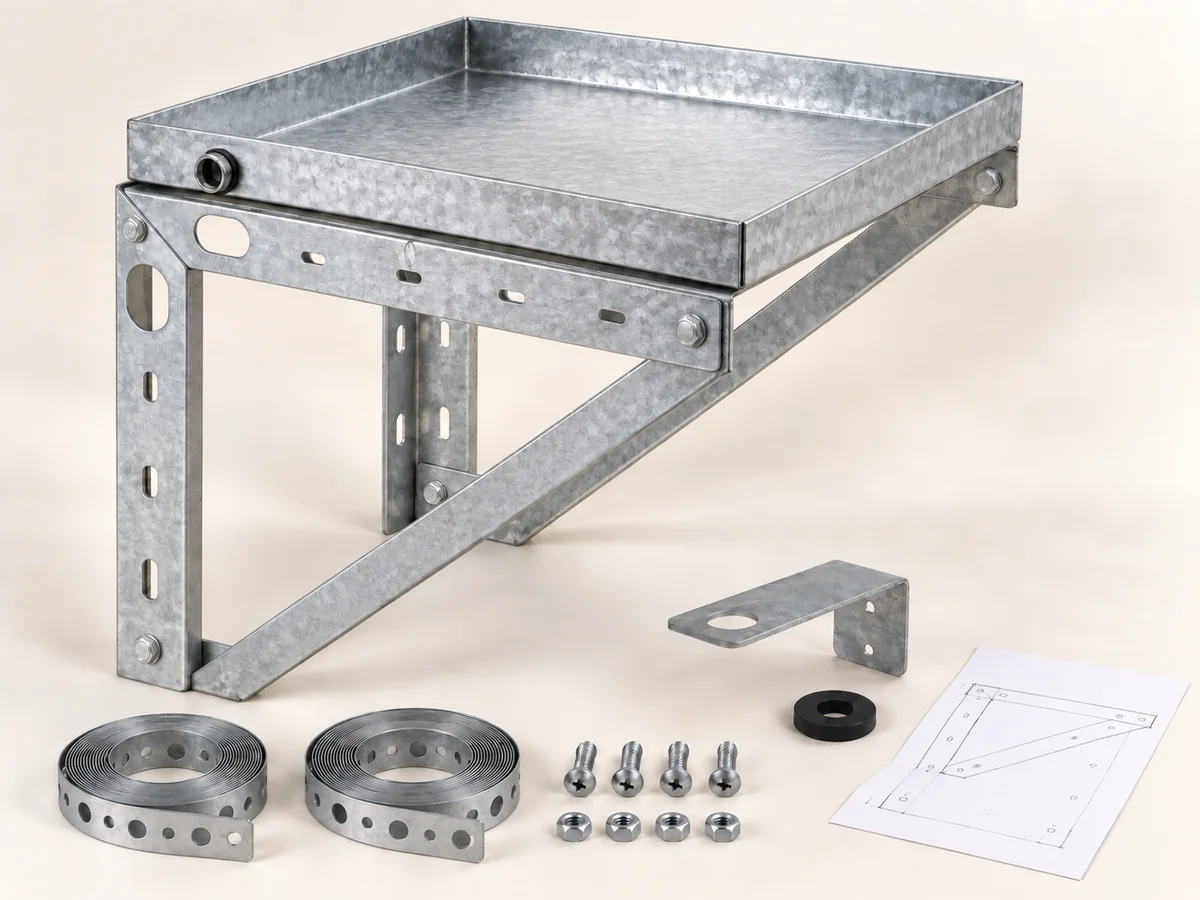

Included Components
| Description | Qty |
|---|---|
| Angle wall brackets, left / right | 2 |
| Gusset plates | 2 |
| Horizontal cross bars | 2 |
| Square drain pan, 24 × 24 × 2.5 in | 1 |
| Drain fitting with locknut and O-ring | 1 |
| Physical installation template | 1 |
| 5/16 in-18 × 3/4 in hex bolts — gussets | 4 |
| 5/16 in-18 hex nuts — gussets | 4 |
| 5/16 in flat washers — gussets | 4 |
| 1/4 in-20 × 1/2 in flat-head screws — cross bars | 4 |
| 1/4 in-20 hex nuts — cross bars | 4 |
| 1/4 in flat washers — cross bars | 4 |
| Hanger strap kit: two 10 ft × 3/4 in straps; four 1/4 in-20 × 1/2 in pan-head screws and four nuts | 1 kit |
| Expansion bracket and 3/8 in-thick rubber washer | 1 kit |
Downloads
Technical Documents
Download the technical data and fillable project submittal for this exact product, plus its shared installation guidance. Save the PDF locally and use a form-capable PDF application to complete the submittal.
