Tankless Water Heater 20" Wall-Mount Drain Pan - Galvanized
A galvanized wall-mount drain pan positioned beneath a tankless water heater and its piping to collect leakage and incidental drips.

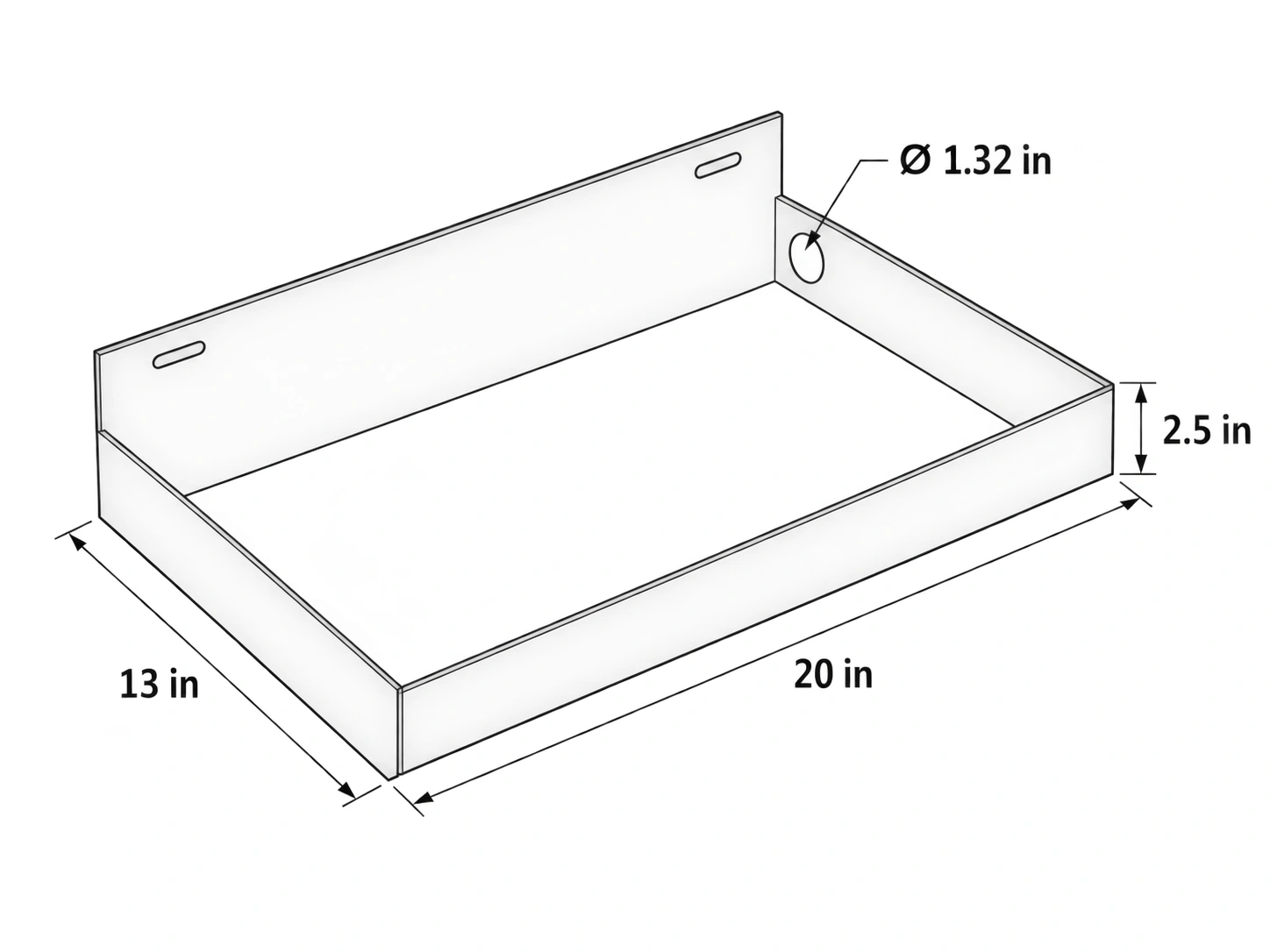

- Pan footprint: 20 in wide × 13 in deep
- Pan wall height: 2.5 in
- Material / finish: Galvanized steel / mill finish
Quote-based ordering. Download technical data and installation guidance below.
Add products to your Quote Builder, then send an RFQ for pricing and availability. Adding a product does not place an order.
Product Overview
A galvanized wall-mount drain pan positioned beneath a tankless water heater and its piping to collect leakage and incidental drips.
Mount below the heater; the pan is not a water-heater support. The 1.32 in opening is a hole diameter, not a nominal pipe or thread size.
Water heater and installation piping are not included. Confirm appliance fit and the actual drain connection before installation.
Specifications
- Official SKU
- DP-20-GA-C1
- Pan footprint
- 20 in wide × 13 in deep
- Pan wall height
- 2.5 in
- Material / finish
- Galvanized steel / mill finish
- Thickness
- 18 gauge / 0.05 in
- Drain opening
- 1.32 in diameter
- Mounting
- Rear wall-mount flange with slotted holes
- Drain fitting
- NPT fitting included
Downloads
Technical Documents
Download the technical data and fillable project submittal for this exact product, plus its shared installation guidance. Save the PDF locally and use a form-capable PDF application to complete the submittal.
Frequently Asked Questions
Where are the technical documents?
Download the technical data and fillable project submittal, plus the applicable shared installation guide, in Technical Documents. Save the PDF locally to complete its form fields in a form-capable PDF application.
How do I request pricing?
Add this official product to your Quote Builder and specify quantities and project requirements. A quote request is not an order.
Have a product question?
Ask about specifications, compatibility, or your project requirements.
Related Products

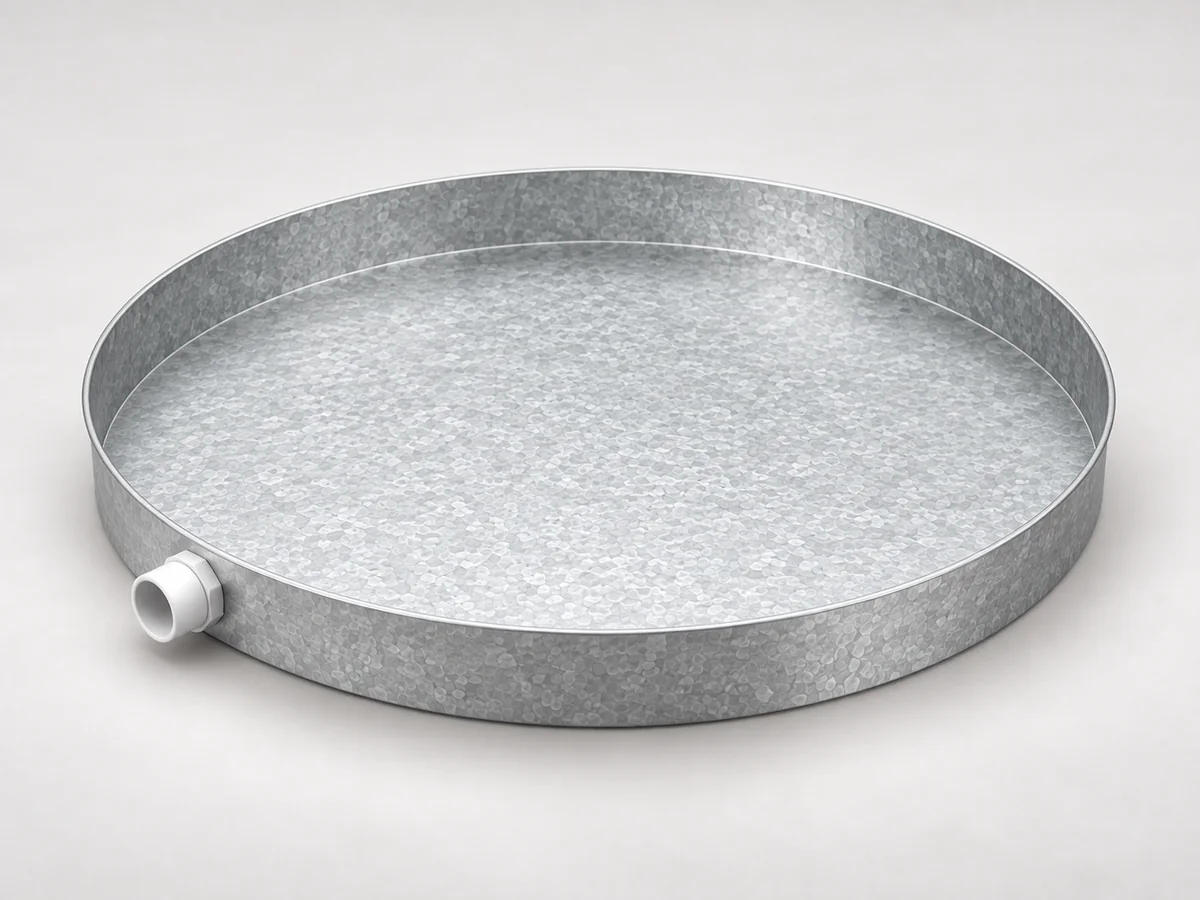

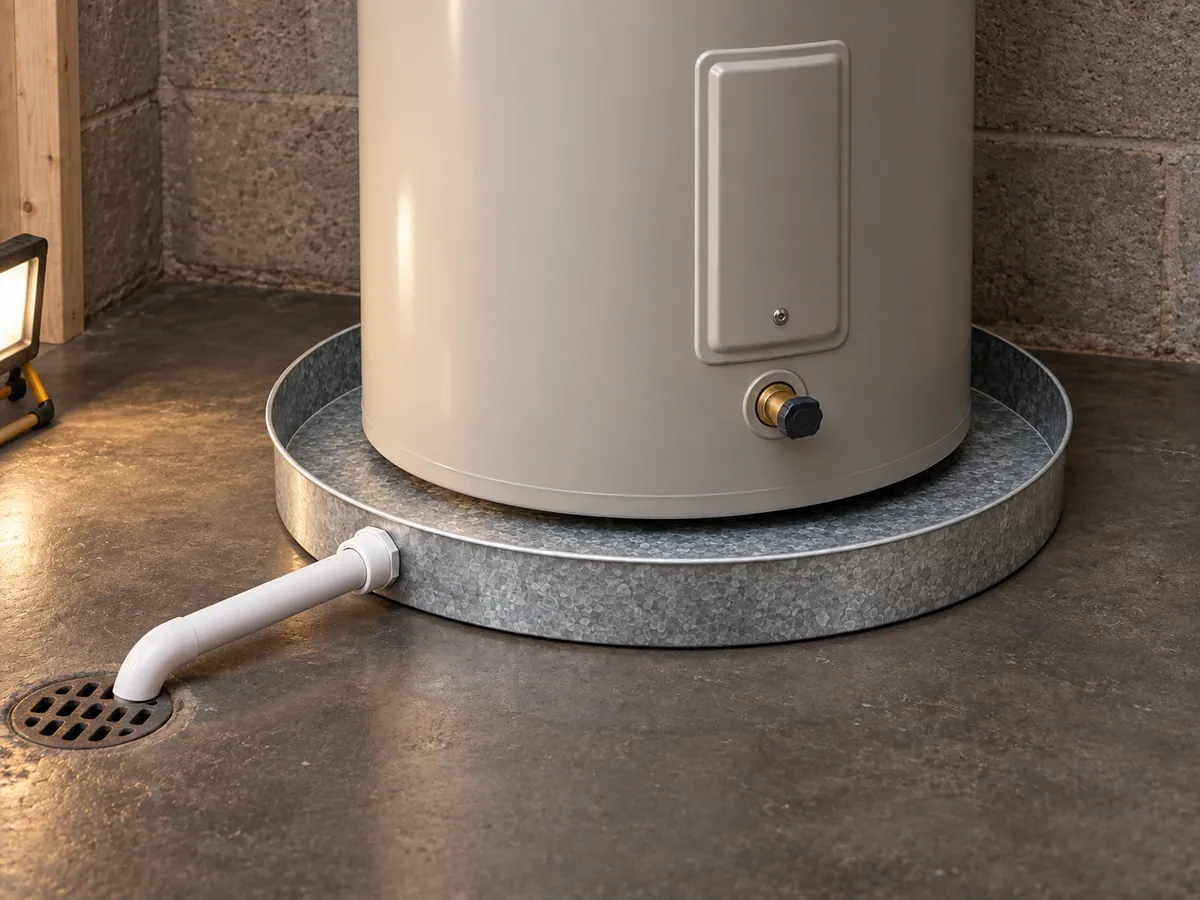

Water Heater 24" Round Drain Pan - Galvanized
A round galvanized steel drain pan for secondary containment beneath a water heater or other compatible round-base equipment.

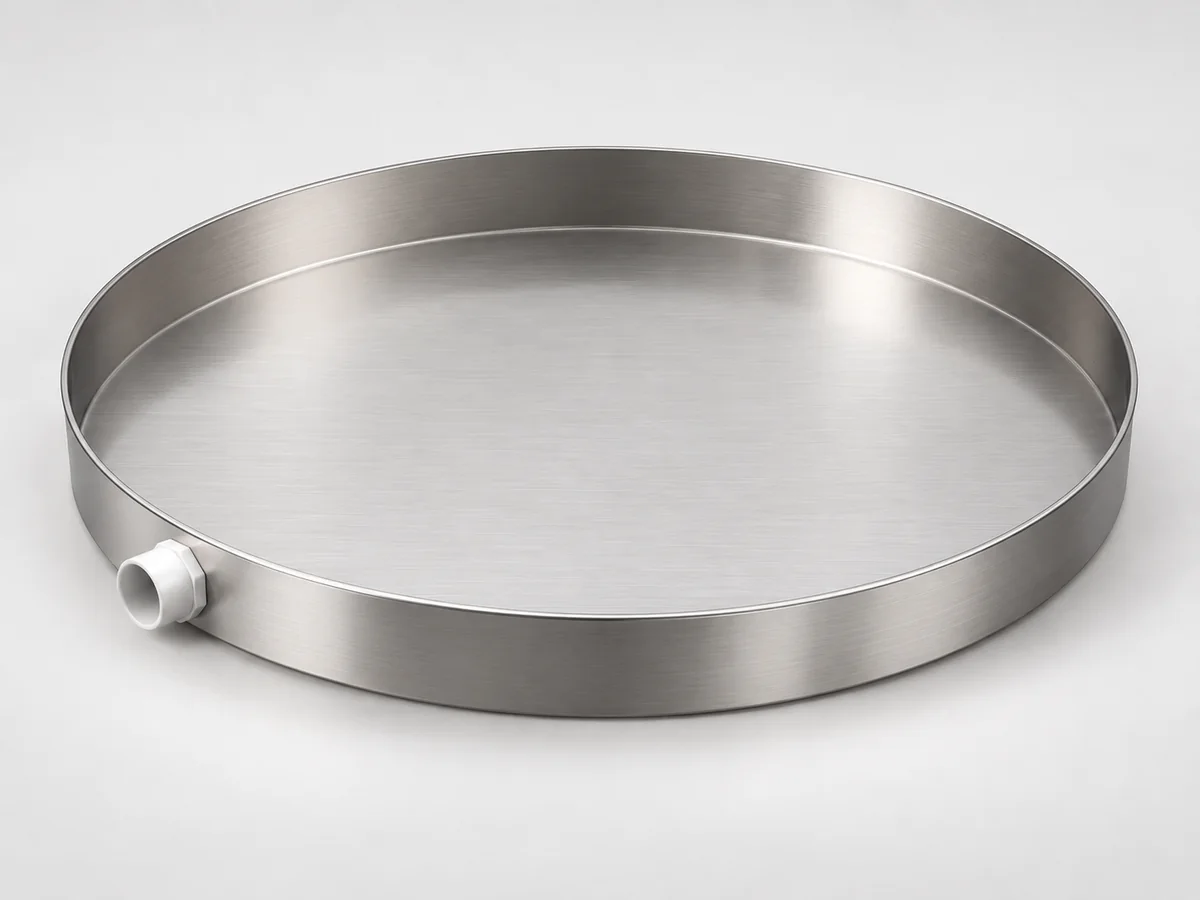

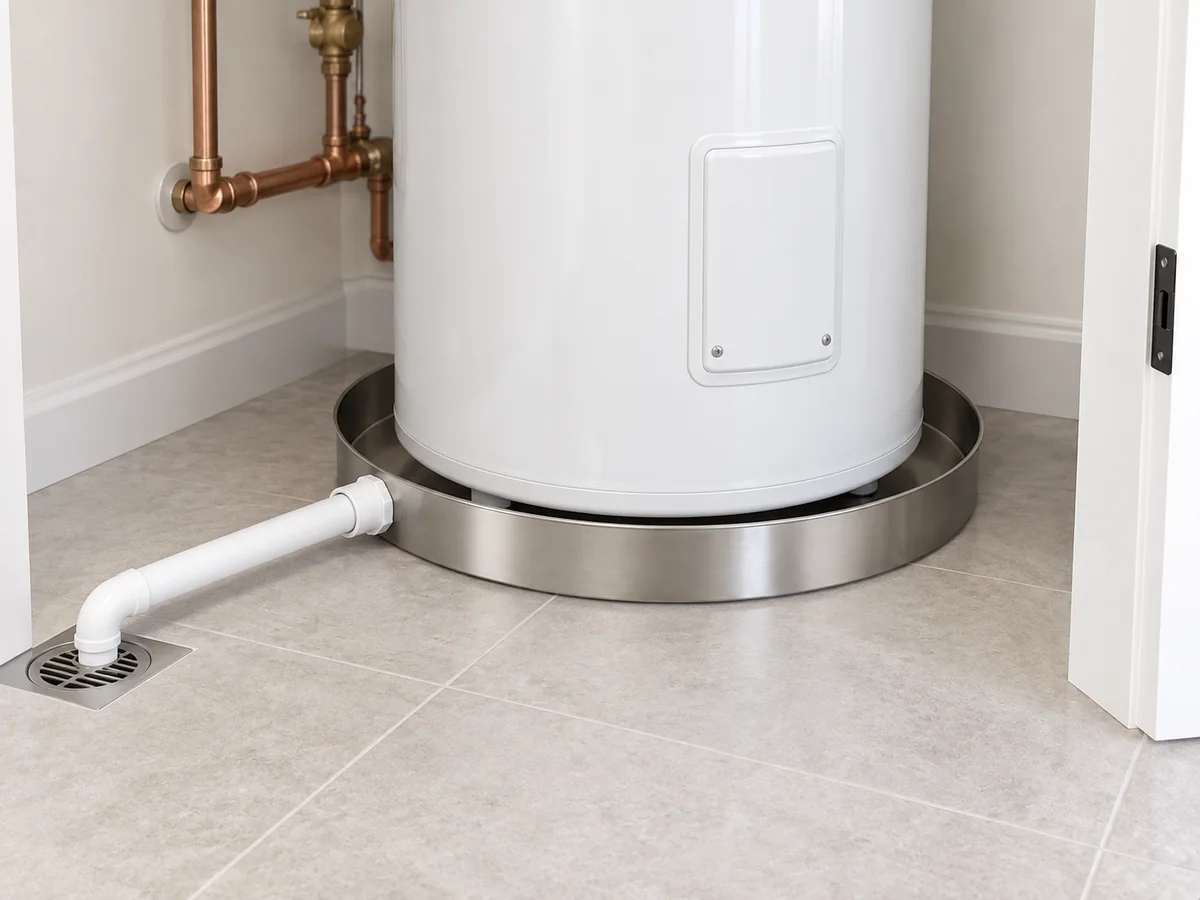

Water Heater 24" Round Drain Pan - Stainless Steel
