Water Heater 24" Drain Pan - Galvanized
A square galvanized drain pan for secondary containment beneath a water heater. It collects leakage, condensation and incidental discharge from the heater and its connections.
Mechanical
Water Heater 29" Trench Drain Pan - White
An open-front water-heater drain pan with an entry-side trench. The open front allows equipment to be moved into position without lifting it over a full-height pan wall.
- Pan dimensions: 29 in deep × 25 in wide × 1 in high
- Material: Steel
- Thickness: 18 gauge / 0.05 in
Quote-based ordering. Download technical data and installation guidance below.
Add products to your Quote Builder, then send an RFQ for pricing and availability. Adding a product does not place an order.
Product Overview
An open-front water-heater drain pan with an entry-side trench. The open front allows equipment to be moved into position without lifting it over a full-height pan wall.
Keep the entry trench and drain path clear. The 3.10 in callout is reproduced as shown; it is not a separately stated usable-footprint dimension. Do not infer the outlet thread size from the drawing.
Water heater and installation piping are not included. Confirm appliance fit and the actual drain connection before installation.
Specifications
- Official SKU
- TDP-29-WT
- Pan dimensions
- 29 in deep × 25 in wide × 1 in high
- Material
- Steel
- Thickness
- 18 gauge / 0.05 in
- Finish
- White powder coat
- Drainage feature
- Entry-side trench with perforated cover
- Drawing callout

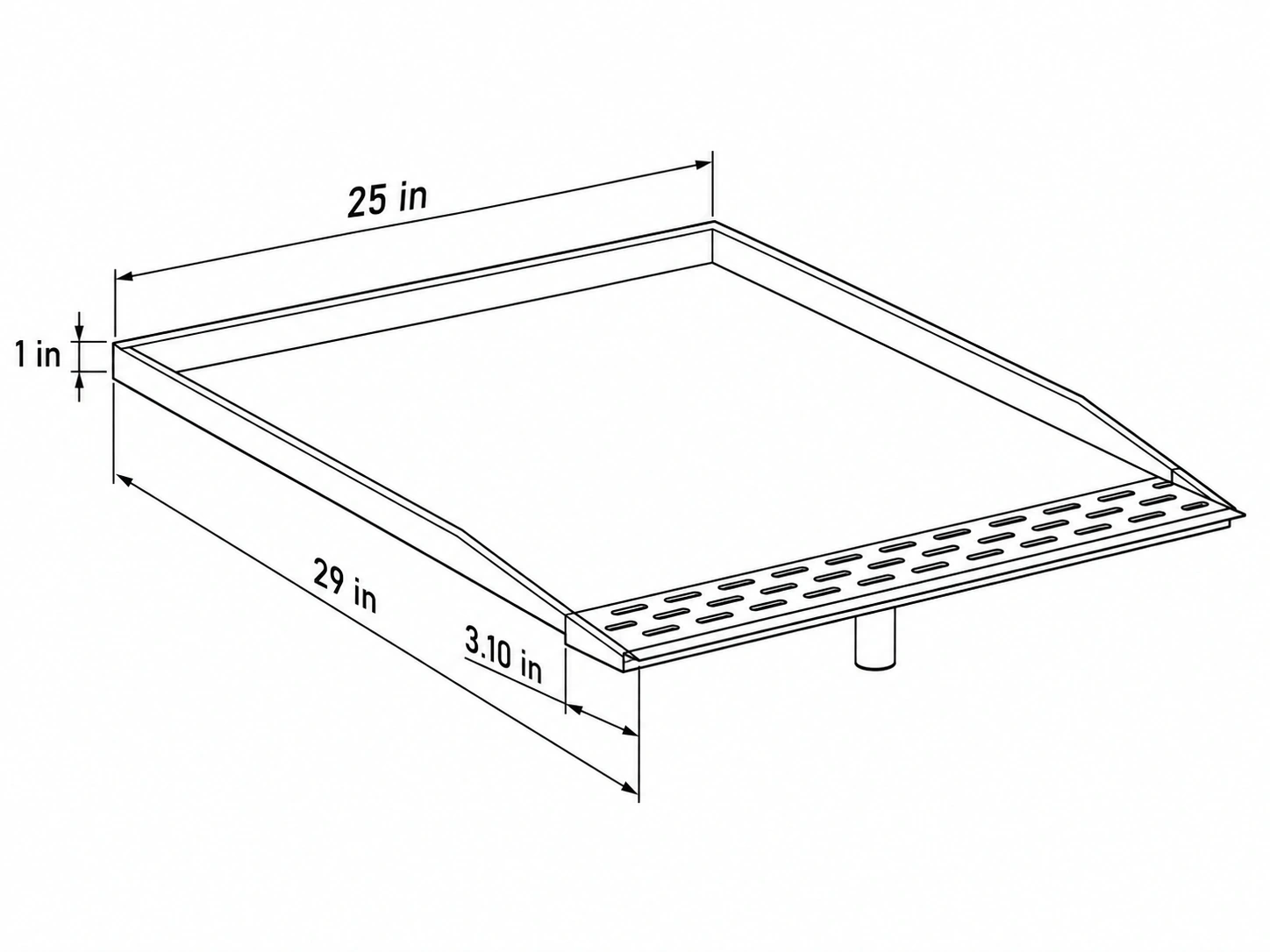

- 3.10 in at the front trough; see dimensional view
Downloads
Technical Documents
Download the technical data and fillable project submittal for this exact product, plus its shared installation guidance. Save the PDF locally and use a form-capable PDF application to complete the submittal.
Frequently Asked Questions
Where are the technical documents?
Download the technical data and fillable project submittal, plus the applicable shared installation guide, in Technical Documents. Save the PDF locally to complete its form fields in a form-capable PDF application.
How do I request pricing?
Add this official product to your Quote Builder and specify quantities and project requirements. A quote request is not an order.
Have a product question?
Ask about specifications, compatibility, or your project requirements.
Related Products
Water Heater 24" Round Drain Pan - Galvanized
A round galvanized steel drain pan for secondary containment beneath a water heater or other compatible round-base equipment.
Water Heater 24" Round Drain Pan - Stainless Steel
A round stainless steel drain pan for secondary containment beneath a water heater or other compatible round-base equipment.
Ready to request pricing?
Contact Rough-In to discuss Water Heater 29" Trench Drain Pan - White availability, volume pricing, and project requirements.
